Structural Steel Fabrication Services
Willbanks has the ability to roll angle, tubing, beam, flat bar, channel and pipe. WMI can provide a ‘one off’ part or ability to provide thousands of the same with repeatability in quality. We have hundreds of templates that allow us to save time and increase quality expectations for your angle rolling needs. Our two Structural rolls can provide small parts down to 1′ flat bar up to 6′ square tubing.
Tube Lasers:
Machines:

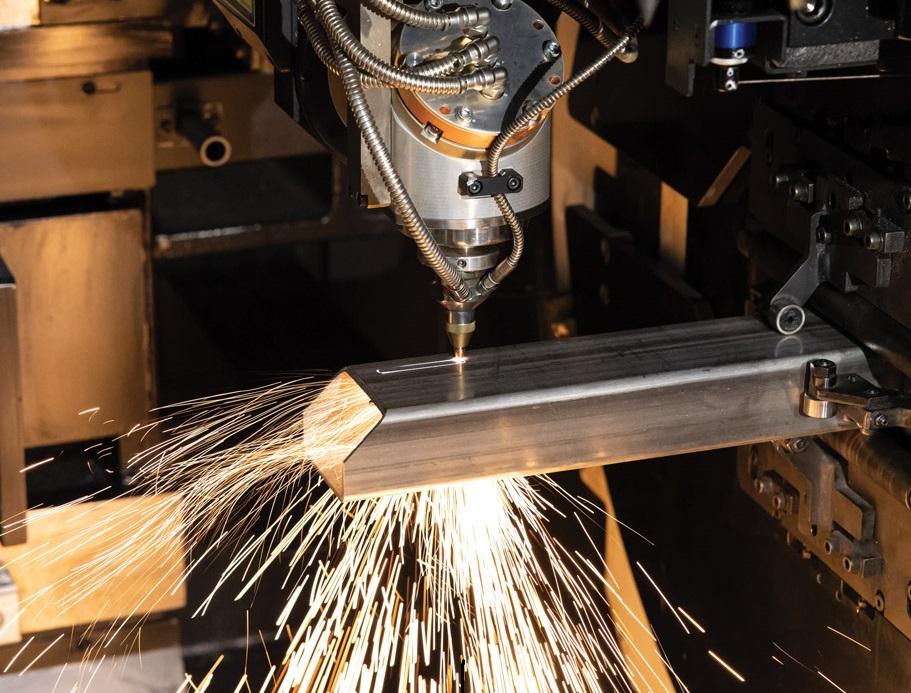

- Mazak FG-220- 3D Laser Cutter
- Mazak FG-400 NEO-3D Laser Cutter
Notes:
- Solid State Laser Technology for Tube and Structural Applications
- Cutting options include: Miter Cutting, Coping, Beveling, Tapping & Stitch Cutting
- We can cut: Square, Rectangle & Round Tubing/Pipe/Channel/Angle/Flat Bar/Wide Flange & I Beams
- Round size ranges from .079″-16″
- Square/Rectangular ranges from .79″ x .79″ to 12″ x 12″
Roll:
- 4½” x 4½” x ½” Angle “Leg Out” min. 50″ diameter
- 4″ x 4″ x ½” Angle “Leg In” min. 60″ diameter
- 1″ x 4″ Flat Bar Hardway min. 36″ diameter
- 1″ x 8″ Flat Bar Easyway min. 36″ diameter
- 4″ square max/min diameter varies with wall thickness
- Channel & Beam – 8″ width max. varies with diameter
- 4″ Pipe min. 48″ diameter
- 4″ square tubing
